Palletizing system layout: what to plan around the robot

A palletizing system layout determines how reliably automation will work in day-to-day production. The robot matters, but so do the routes that bring boxes in, supply pallets and move completed pallets out.

This guide explains what to plan around the robot before a palletizing system is specified. It helps teams turn available floor space into a workable flow for products, people and materials.

Start at the point where boxes arrive

Map the condition and position of boxes when they reach the palletizing area. Note their dimensions, weight, orientation, spacing and the way they arrive from upstream equipment. An unstable or inconsistent handover can create problems that a robot cannot solve by itself.

Include normal production variation. Different box sizes, formats and changeovers should be part of the layout assessment from the beginning.

Plan empty and completed pallet movement

Every palletizing system needs a reliable route for empty pallets and a safe route for completed loads. Consider where pallets are staged, how they enter the cell and how a pallet truck or other handling equipment removes them without interrupting production.

Also allow enough space for the final stack height, turning circles and temporary staging. A compact footprint is valuable only when material can still move through it predictably.

Give operators clear access

Operators may select a recipe, place an empty pallet, remove a finished pallet, inspect packaging or respond to a line stop. Their paths should be straightforward and should not cross unnecessarily with product or vehicle routes.

Plan access to the control interface, the pallet positions and routine checks. When these tasks are considered early, the process is easier to operate and maintain after installation.

Make changeovers part of the design

For a mixed production schedule, layout and changeover design belong together. Record which box, pallet or pattern changes occur, how frequently they happen and which adjustments are required. This prevents a technically capable cell from becoming slow in routine use.

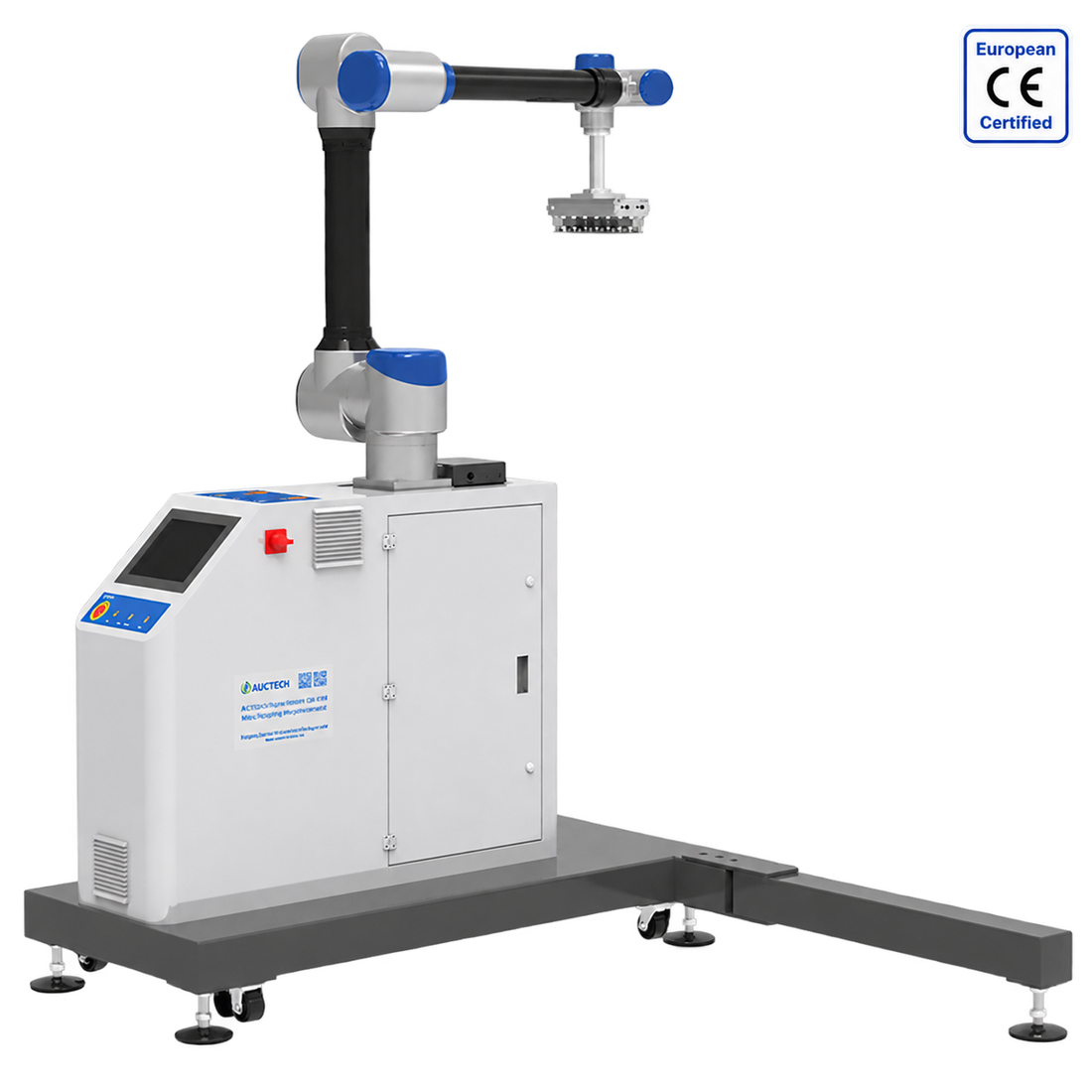

Our cobot palletizer is designed for different box sizes and stacking patterns, with palletizing heights up to 2.5 m. The right configuration still depends on the product flow and available space.

Integrate safety into the material flow

Safety is a design input, not a final boundary around the equipment. Assess people, pallets, moving loads, nearby machines and maintenance tasks together. The final safety approach should support the real workflow rather than create workarounds.

Consider what happens during normal operation, loading, clearing a stop and servicing the cell. These situations often reveal layout constraints that are not visible on a simple floor plan.

Allow for maintenance and exceptions

A workable layout also allows the system to be inspected, cleaned and serviced without creating unnecessary downtime. Leave practical access to the robot, gripper, conveyors and any control equipment. Think through how a damaged box, a rejected pallet or a temporary line stop is handled before the equipment is in place.

Document the people who will respond to those situations and the route they use. This does not replace a detailed engineering or safety assessment, but it ensures that exceptional work is considered alongside normal production flow. A layout that handles both is more likely to remain efficient over time.

Test the layout with production data

Use representative box data, pallet patterns, throughput and operator tasks to test whether the proposed layout supports the actual process. A practical assessment checks the complete flow from box arrival to finished-pallet removal.

At Q-botics, we assess the application before recommending a configuration. Contact us to discuss your layout, product flow and the information needed for a well-founded palletizing system assessment.
